Reliable Ceramic/Glass Fuse Holder for Precision Circuit Protection Applications
Introduction

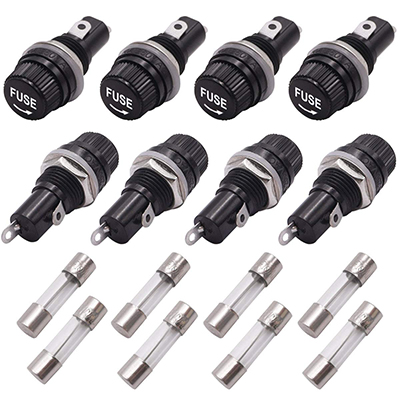

A reliable Glass Fuse Holder is a specialized circuit protection component designed to securely accommodate glass fuses, ensuring precise and safe fuse installation in various electronic systems. It provides stable electrical contact and mechanical support for glass fuses, safeguarding circuits from overcurrent and short circuits. Widely used in consumer electronics, test equipment, medical devices, and industrial control panels, our Glass Fuse Holders come in diverse models to match different glass fuse sizes and application requirements.
Key Characteristics of Glass Fuse Holder
Our Glass Fuse Holders are engineered with features optimized for glass fuse compatibility and performance. They are constructed from high-insulation materials such as thermoplastic or ceramic, which offer excellent heat resistance and electrical insulation, preventing leakage and short circuits. The precision-engineered fuse slots ensure a snug fit for glass fuses, eliminating loose connections that could cause arcing or overheating. Additionally, the clear or translucent housing options allow for easy visual inspection of the glass fuse’s status (blown or intact), enabling quick troubleshooting. The contact terminals are made of high-conductivity metals like brass or phosphor bronze, ensuring low contact resistance and reliable current transmission.
Application Fields of Glass Fuse Holder
The Glass Fuse Holder is essential in fields requiring precise and visible circuit protection. In consumer electronics, it’s used in audio equipment, power supplies, televisions, and home appliances, providing compact and reliable protection for internal circuits. In test and measurement equipment such as oscilloscopes, multimeters, and signal generators, it safeguards sensitive electronic components from current spikes during testing. For medical devices like blood pressure monitors and small diagnostic tools, it ensures safe operation by preventing circuit damage that could affect device performance. In industrial control panels, it’s integrated into auxiliary circuits and instrumentation, offering easy access for fuse replacement and status checks.
Application Industries of Glass Fuse Holder
Numerous industries depend on Glass Fuse Holders for their circuit protection needs. The consumer electronics manufacturing industry is a major user, incorporating the holders into a wide range of household and personal electronic products. The electronic test equipment industry relies on them to protect expensive testing instruments from electrical faults. The medical device industry uses them to meet strict safety standards for small, portable medical equipment. The industrial automation industry employs them in control systems and instrumentation panels. Additionally, the automotive electronics industry uses specialized Glass Fuse Holders in in-vehicle electronic accessories and diagnostic tools.
Product Model Specifications and Parameters
| Model Number | Fuse Size (Glass) | Current Rating | Voltage Rating | Mounting Style | Housing Material | Contact Material |
|---|---|---|---|---|---|---|
| GFH-01 | 5x20mm | 0.1A-10A | 250V AC | Through-Hole PCB | Thermoplastic | Brass |
| GFH-02 | 6.3x32mm | 1A-15A | 300V AC | Panel Mount | Ceramic | Phosphor Bronze |
| GFH-03 | 8x25mm | 2A-20A | 250V AC/DC | Through-Hole PCB | Thermoplastic | Brass |
| GFH-04 | 10x38mm | 5A-30A | 600V AC | Panel Mount | Ceramic | Phosphor Bronze |
Why Opt for Our Glass Fuse Holder?
Our Glass Fuse Holders combine precision, reliability, and versatility to meet diverse application needs. We adhere to strict quality control processes, with each holder undergoing tests for electrical performance, mechanical strength, and heat resistance to comply with international standards such as UL and CE. Our extensive product line covers all common glass fuse sizes and mounting styles, ensuring you find the perfect match for your project. We also offer customization services, including custom housing colors, terminal configurations, and branding options. With competitive pricing, fast delivery, and dedicated technical support, we are committed to providing top-quality Glass Fuse Holders that enhance the safety and performance of your electronic systems.
