Compact Jcase Fuse for Automotive Low-Voltage Circuit Protection & Replacement
Introduction

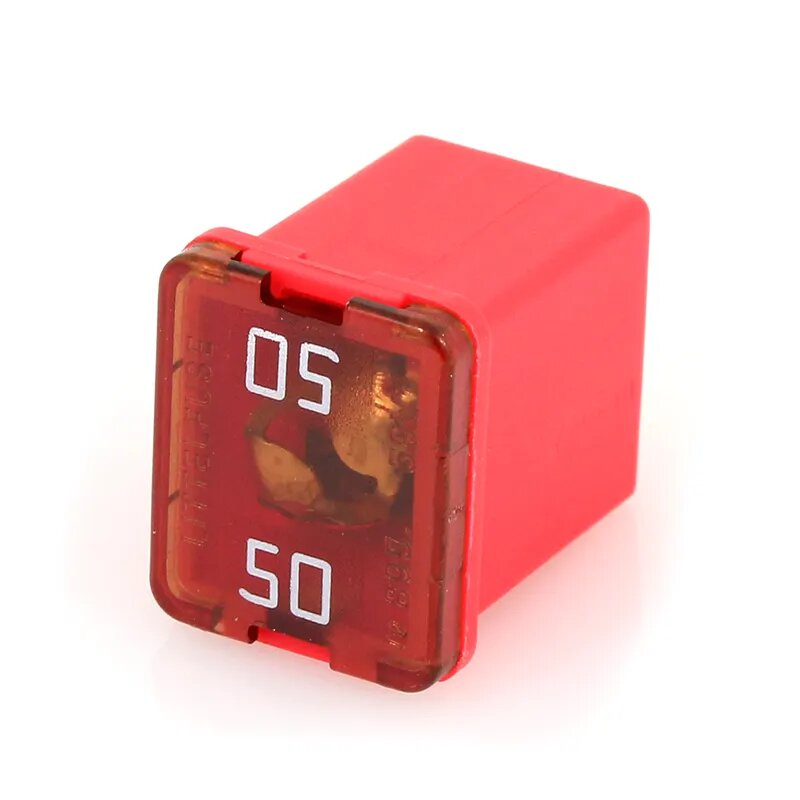

Jcase Fuse is a compact, low-profile current-limiting component designed for modern automotive electrical systems, delivering reliable overcurrent and short-circuit defense. With its plug-in blade design and space-saving structure, it safeguards low-voltage circuits (12V/24V DC) in cars, trucks, and SUVs, such as infotainment systems and power accessories. Easy to install and compatible with standard Jcase fuse holders, it’s essential for OEM and aftermarket automotive maintenance.
Key Features of Jcase Fuse
Jcase Fuse is distinguished by its slim, space-efficient design and reliable performance for low-voltage applications. It features a molded thermoplastic housing (UL94 V0-rated) with a thin, flat blade element made of zinc alloy, ensuring quick response to overcurrent while resisting heat and corrosion. The unique plug-in terminal design allows for tool-free installation into dedicated Jcase fuse holders, saving space in crowded automotive electrical panels. Jcase Fuses have an interrupting rating of up to 10,000A at 12V DC, effectively stopping fault currents in low-voltage circuits. They are also color-coded by amperage (e.g., 10A=red, 15A=blue, 20A=yellow) for instant visual identification during maintenance.
Application Fields of Jcase Fuse
Jcase Fuse is primarily used in modern automotive electrical systems, protecting a range of low-voltage circuits in passenger cars, pickup trucks, SUVs, and minivans. It safeguards components like infotainment systems, navigation units, USB charging ports, power seats, and rear-seat entertainment systems. In commercial vehicles such as delivery vans and light trucks, it protects auxiliary circuits for cargo lights and communication devices. Additionally, Jcase Fuses are used in some off-road vehicles and recreational vehicles (RVs) with 12V DC electrical setups, where space constraints demand compact circuit protection solutions.
Application Industries of Jcase Fuse
The automotive manufacturing industry integrates Jcase Fuses as original equipment (OE) in new vehicles, complying with safety standards like ISO 8820-5 and SAE J1284. The automotive aftermarket is a major consumer, supplying Jcase Fuses in replacement packs for vehicle maintenance and repair—often including common amperage ratings for versatile use. The light commercial vehicle sector uses Jcase Fuses in vans and small trucks, while the automotive accessories industry incorporates them into aftermarket electronics kits (e.g., dashcam installs, custom audio systems). Additionally, the RV and powersports industry uses Jcase Fuses for compact 12V circuit protection in campers and ATVs.
Jcase Fuse Model Specifications and Parameters
| Parameter Item | Specification |
|---|---|
| Product Type | Jcase Fuse (Low-Profile Automotive Fuse) |
| Voltage Rating | DC 12V – 24V |
| Current Rating Range | 5A – 40A (Common Ratings: 10A, 15A, 20A, 25A, 30A) |
| Interrupting Rating | 10,000A at 12V DC |
| Body Material | Housing: Thermoplastic (UL94 V0); Element: Zinc Alloy |
| Terminal Type | Plug-In Flat Blade Terminals |
| Operating Temperature Range | -40℃ to 125℃ |
| Safety Certifications | UL, CE, RoHS, ISO 8820-5 |
For automotive technicians and DIY enthusiasts, Jcase Fuse is a essential component for modern low-voltage circuit protection. Its compact design, easy installation, and color-coded ratings make it a convenient solution for safeguarding vehicle electronics. By selecting the correct amperage rating and using compatible Jcase fuse holders, users ensure the reliability and safety of automotive electrical systems, preventing damage to sensitive components and reducing the risk of electrical faults.
