High-Current ANL Fuse for Automotive & Industrial Circuit Protection
Introduction

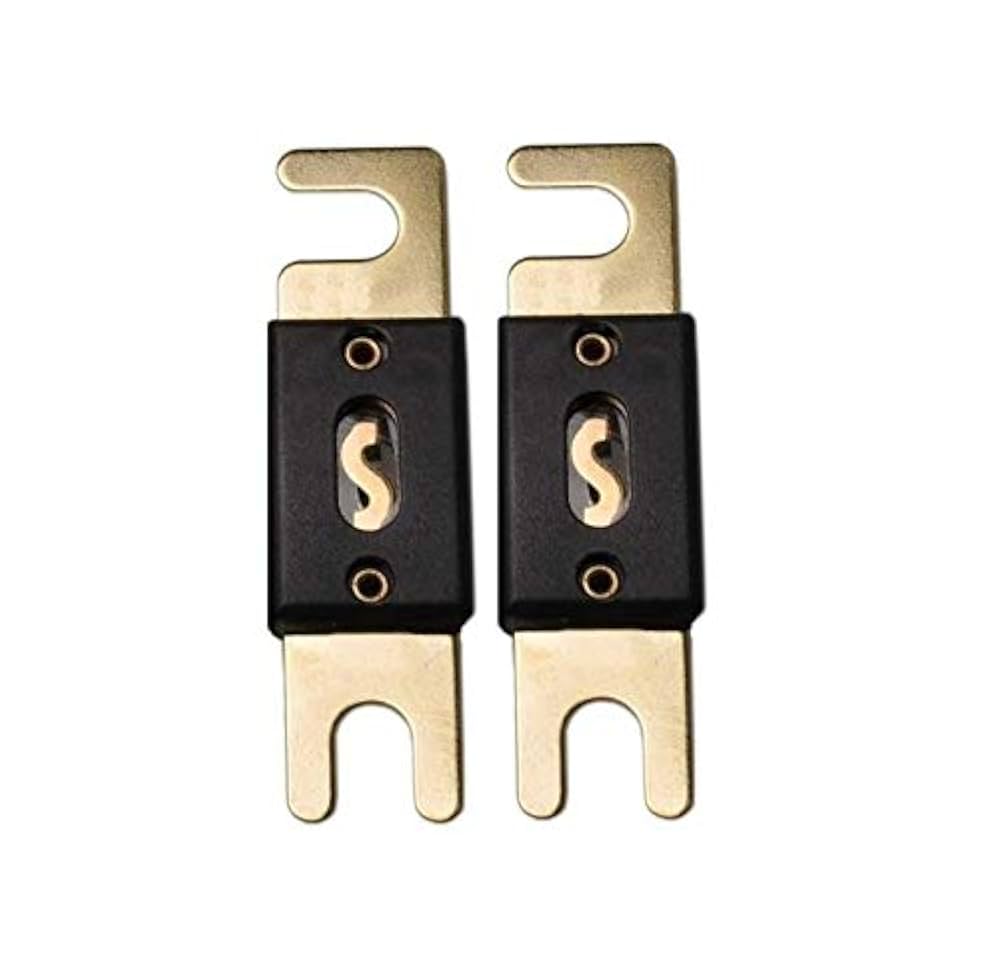

ANL fuse is a heavy-duty current-limiting component designed for high-amperage electrical systems, providing reliable overcurrent and short-circuit protection. With a robust bolt-down design and high interrupting rating, it safeguards circuits from damage caused by excessive current in automotive, industrial, and renewable energy applications. Its ability to handle currents up to 500A makes it ideal for electric vehicles, marine vessels, and power distribution systems where heavy-duty protection is essential.
Key Features of ANL Fuse
ANL fuse stands out with its heavy-duty construction and high-performance protection capabilities. It features a cylindrical or rectangular body made of flame-retardant ceramic or fiberglass, ensuring resistance to high temperatures and electrical arcing. The bolt-down terminals (typically 5/16″ or 3/8″ studs) provide a secure, low-resistance connection, preventing overheating even under maximum current loads. ANL fuses have an interrupting rating of up to 10,000A at 32V DC, making them capable of safely stopping fault currents in high-power systems. Additionally, they are color-coded by amperage rating for quick identification, simplifying installation and replacement.
Application Fields of ANL Fuse
ANL fuse is widely used in applications requiring high-current protection. In the automotive sector, it’s a critical component in electric vehicles (EVs) and hybrid electric vehicles (HEVs), protecting main power circuits between the battery pack and inverter. It’s also used in off-road vehicles, RVs, and commercial trucks to safeguard audio systems, lighting arrays, and auxiliary power units. In marine applications, ANL fuses protect boat battery banks, trolling motors, and onboard power distribution systems from short circuits caused by water exposure. Furthermore, they are utilized in renewable energy systems (solar inverters, wind turbine controllers) and industrial equipment (forklifts, generators) to manage high-amperage current flows.
Application Industries of ANL Fuse
The automotive aftermarket relies heavily on ANL fuses for EV conversions and high-performance vehicle upgrades, where custom power systems demand robust protection. The electric vehicle manufacturing industry integrates ANL fuses into original equipment (OE) designs, ensuring compliance with safety standards like ISO 6469-3. The marine industry uses ANL fuses in boat production and maintenance, adhering to ABYC (American Boat & Yacht Council) guidelines for electrical safety. Additionally, the renewable energy sector incorporates ANL fuses into solar and wind power installations, while the industrial machinery industry depends on them for heavy-duty equipment protection.
ANL Fuse Model Specifications and Parameters
| Parameter Item | Specification |
|---|---|
| Product Type | ANL Fuse (Heavy-Duty High-Current Fuse) |
| Voltage Rating | DC 32V, AC 250V |
| Current Rating Range | 20A – 500A (Common Ratings: 50A, 100A, 200A, 300A, 400A) |
| Interrupting Rating | 10,000A at 32V DC |
| Body Material | Ceramic, Fiberglass-Reinforced Plastic |
| Terminal Type | Bolt-Down Studs (5/16″ or 3/8″ Thread) |
| Operating Temperature Range | -40℃ to 85℃ |
| Safety Certifications | UL, CE, RoHS |
For professionals in automotive, marine, or industrial fields, ANL fuse is an essential component for high-current circuit protection. Its durable design, high interrupting rating, and wide application range make it a reliable choice for safeguarding valuable equipment and systems. By selecting the correct amperage rating and adhering to installation guidelines, ANL fuses ensure long-term safety and performance in even the most demanding electrical environments.
