Reliable Body Wire Harness for Automotive & Vehicle Interior Systems
Introduction

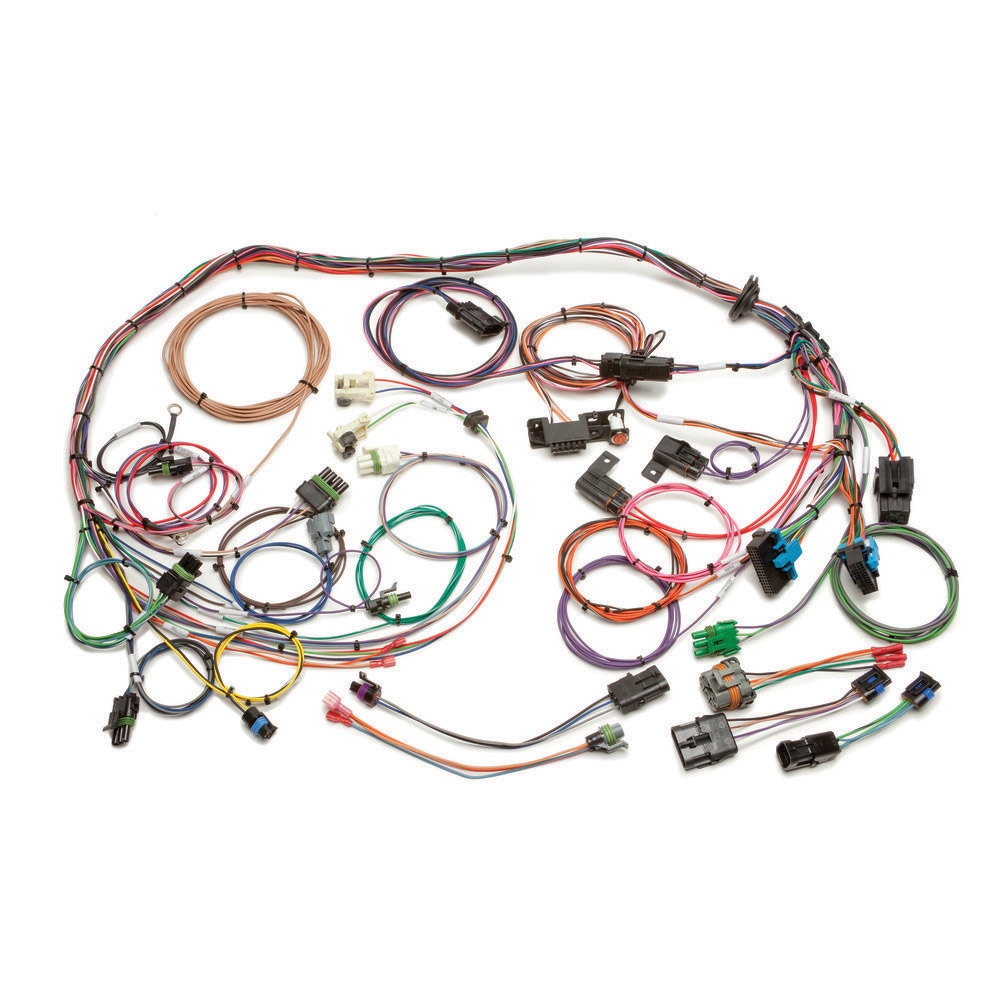

A reliable Body Wire Harness is a key electrical component that connects and organizes wiring for vehicle interior and exterior systems. It transmits power and signals to components like lights, doors, seats, and infotainment, ensuring seamless operation. Widely used in passenger cars, commercial vehicles, and electric vehicles, our body wire harnesses are engineered for durability and space efficiency.
Key Features of Body Wire Harness
Our Body Wire Harness is designed with vehicle interior/exterior demands in mind. It uses flexible, abrasion-resistant wires (16-24 AWG) and halogen-free insulation (UL94 V-0) to meet automotive safety standards. The harness features compact bundling and precise routing to fit tight spaces in door panels, dashboards, and seat structures. Corrosion-resistant terminals (tin-plated copper) ensure stable connections, while optional shielding (foil or braided) reduces interference for infotainment and sensor signals. It supports waterproof connectors (IP65/IP67) for exterior components like tail lights and door locks, with customizable lengths and connector types (TE, Molex, Yazaki) for diverse vehicle models.
Application Fields of Body Wire Harness
This Body Wire Harness is essential for vehicle body electrical systems. In vehicle interiors, it connects dashboards, infotainment systems, power seats, and climate controls, ensuring smooth user experience. In exterior components, it links headlights, tail lights, turn signals, and door locks, supporting safety functions. For electric vehicles (EVs), it integrates with battery management systems and charging ports to transmit power and status signals. In commercial vehicles (vans, buses), it powers passenger area lights, door controls, and onboard communication devices.
Application Industries of Body Wire Harness
Multiple industries rely on our Body Wire Harness for vehicle electrical connectivity. The automotive manufacturing industry uses it in passenger cars, SUVs, and EVs as original equipment. The commercial vehicle industry incorporates it into buses, trucks, and delivery vans. The electric vehicle industry depends on it for integrating body systems with EV powertrains. The automotive aftermarket industry offers it for vehicle repairs and customization. Additionally, the specialty vehicle industry utilizes it in ambulances, RVs, and modified cars for tailored electrical setups.
Product Model Specifications and Parameters
| Model Number | Wire Gauge | Insulation Type | Waterproof Rating | Connector Type | Shielding | Application |
|---|---|---|---|---|---|---|
| BWH-C100 | 16-22 AWG | Halogen-Free PVC | IP65 | TE | Foil Shield | Passenger Cars |
| BWH-E200 | 18-24 AWG | XLPE | IP67 | Molex | Braided Shield | Electric Vehicles |
| BWH-V300 | 16-20 AWG | PVC | IP65 | Yazaki | No Shield | Commercial Vans |
| BWH-S400 | 18-22 AWG | Halogen-Free XLPE | IP67 | TE | Foil + Braided Shield | Specialty Vehicles |
Why Choose Our Body Wire Harness
Our Body Wire Harness excels in reliability and adaptability for vehicle applications. Each harness undergoes strict testing, including abrasion resistance, electrical continuity, and environmental durability checks, complying with ISO 10487 and IEC standards. We offer custom designs to match specific vehicle makes and models, optimizing wire routing for space-constrained areas. The use of high-quality insulation and terminals ensures long service life and reduced maintenance. With competitive pricing, timely delivery, and dedicated technical support, we provide a trusted electrical connectivity solution for your vehicle body systems.
